build_app¶

Alias for the build_ios_app action

gym is part of fastlane: The easiest way to automate beta deployments and releases for your iOS and Android apps.

What's gym?¶

gym builds and packages iOS apps for you. It takes care of all the heavy lifting and makes it super easy to generate a signed ipa or app file 💪

gym is a replacement for shenzhen.

Before gym¶

xcodebuild clean archive -archivePath build/MyApp \
                         -scheme MyApp
xcodebuild -exportArchive \
           -exportFormat ipa \
           -archivePath "build/MyApp.xcarchive" \
           -exportPath "build/MyApp.ipa" \
           -exportProvisioningProfile "ProvisioningProfileName"

With gym¶

fastlane gym

Why gym?¶

gym uses the latest APIs to build and sign your application which results in much faster build times.

	Gym Features
🚀	gym builds 30% faster than other build tools like shenzhen
🏁	Beautiful inline build output
📖	Helps you resolve common build errors like code signing issues
🚠	Sensible defaults: Automatically detect the project, its schemes and more
🔗	Works perfectly with fastlane and other tools
📦	Automatically generates an `ipa` and a compressed `dSYM` file
🚅	Don't remember any complicated build commands, just gym
🔧	Easy and dynamic configuration using parameters and environment variables
💾	Store common build settings in a `Gymfile`
📤	All archives are stored and accessible in the Xcode Organizer
💻	Supports both iOS and Mac applications

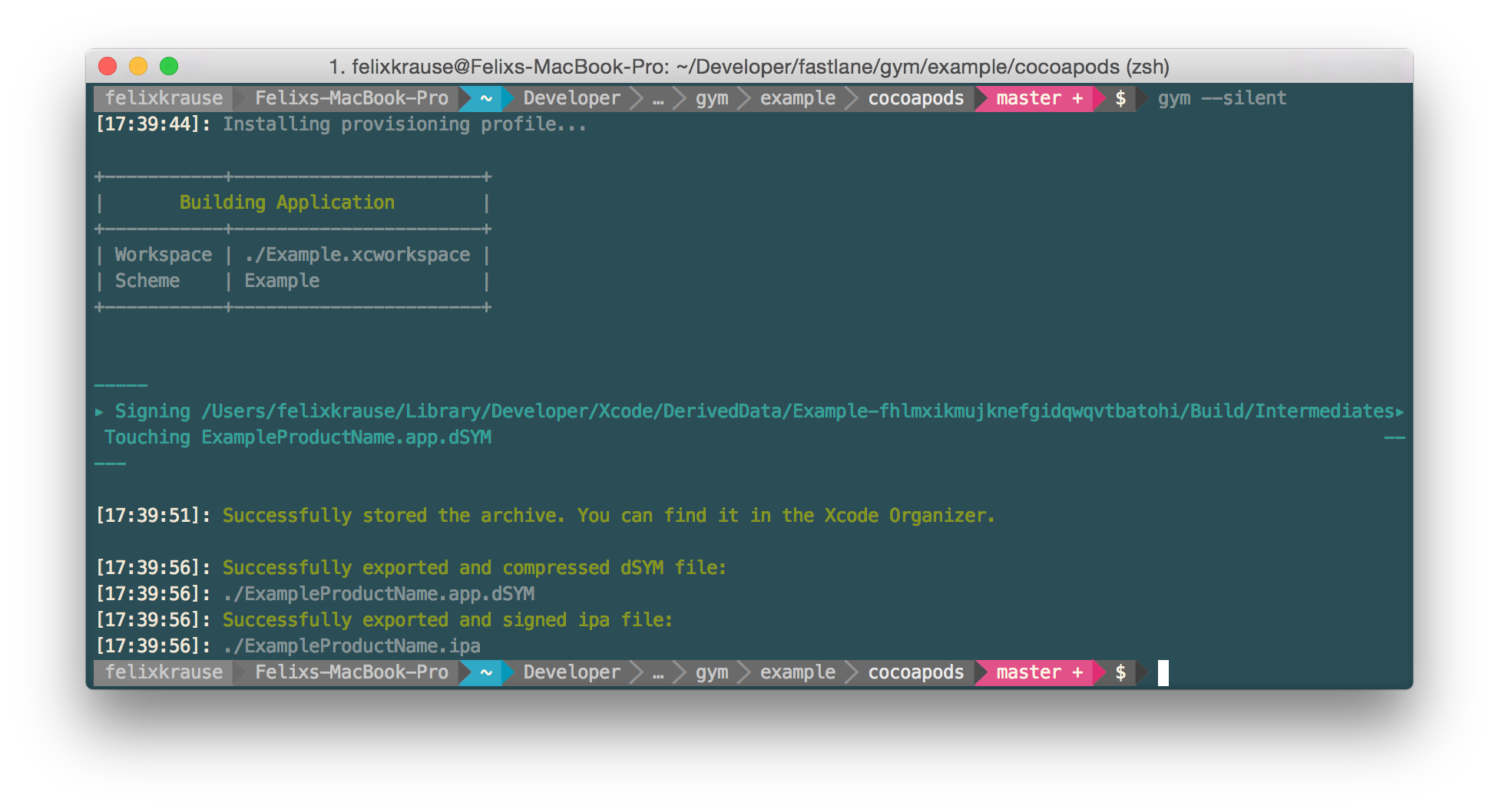

/img/actions/gymScreenshot.png

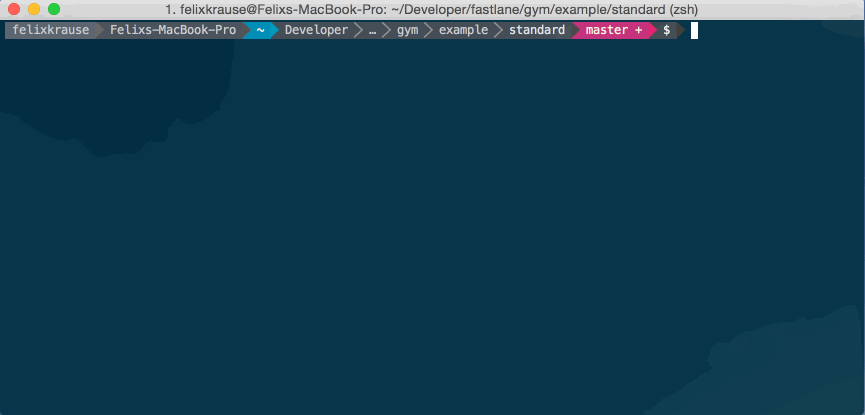

/img/actions/gym.gif

Usage¶

fastlane gym

That's all you need to build your application. If you want more control, here are some available parameters:

fastlane gym --workspace "Example.xcworkspace" --scheme "AppName" --clean

If you need to use a different Xcode installation, use xcode-select or define DEVELOPER_DIR:

DEVELOPER_DIR="/Applications/Xcode6.2.app" fastlane gym

For a list of all available parameters use

fastlane action gym

If you run into any issues, use the verbose mode to get more information

fastlane gym --verbose

Set the right export method if you're not uploading to App Store or TestFlight:

fastlane gym --export_method ad-hoc

To pass boolean parameters make sure to use gym like this:

fastlane gym --include_bitcode true --include_symbols false

To access the raw xcodebuild output open ~/Library/Logs/gym

Gymfile¶

Since you might want to manually trigger a new build but don't want to specify all the parameters every time, you can store your defaults in a so called Gymfile.

Run fastlane gym init to create a new configuration file. Example:

scheme("Example")

sdk("iphoneos9.0")

clean(true)

output_directory("./build")    # store the ipa in this folder
output_name("MyApp")           # the name of the ipa file

Export options¶

Since Xcode 7, gym is using new Xcode API which allows us to specify export options using plist file. By default gym creates this file for you and you are able to modify some parameters by using export_method, export_team_id, include_symbols or include_bitcode. If you want to have more options, like creating manifest file for app thinning, you can provide your own plist file:

export_options("./ExportOptions.plist")

or you can provide hash of values directly in the Gymfile:

export_options = {
  method: "ad-hoc",
  manifest: {
    appURL: "https://example.com/My App.ipa",
  },
  thinning: "<thin-for-all-variants>"
}

Optional: If gym can't automatically detect the provisioning profiles to use, you can pass a mapping of bundle identifiers to provisioning profiles:

export_options: {
  method: "app-store",
  provisioningProfiles: {
    "com.example.bundleid" => "Provisioning Profile Name",
    "com.example.bundleid2" => "Provisioning Profile Name 2"
  }
}

Note: If you use fastlane with match you don't need to provide those values manually.

For the list of available options run xcodebuild -help.

Setup code signing¶

Automating the whole process¶

gym works great together with fastlane, which connects all deployment tools into one streamlined workflow.

Using fastlane you can define a configuration like

lane :beta do
  scan
  gym(scheme: "MyApp")
  crashlytics
end

# error block is executed when a error occurs
error do |lane, exception|
  slack(
    # message with short human friendly message
    message: exception.to_s,
    success: false,
    # Output containing extended log output
    payload: { "Output" => exception.error_info.to_s }
  )
end

When gym raises an error the error_info property will contain the process output in case you want to display the error in 3rd party tools such as Slack.

You can then easily switch between the beta provider (e.g. testflight, hockey, s3 and more).

How does it work?¶

gym uses the latest APIs to build and sign your application. The 2 main components are

xcodebuild
xcpretty

When you run gym without the --silent mode it will print out every command it executes.

To build the archive gym uses the following command:

set -o pipefail && \
xcodebuild -scheme 'Example' \
-project './Example.xcodeproj' \
-configuration 'Release' \
-destination 'generic/platform=iOS' \
-archivePath '/Users/felixkrause/Library/Developer/Xcode/Archives/2015-08-11/ExampleProductName 2015-08-11 18.15.30.xcarchive' \
archive | xcpretty

After building the archive it is being checked by gym. If it's valid, it gets packaged up and signed into an ipa file.

gym automatically chooses a different packaging method depending on the version of Xcode you're using.

Xcode 7 and above¶

/usr/bin/xcrun path/to/xcbuild-safe.sh -exportArchive \
-exportOptionsPlist '/tmp/gym_config_1442852529.plist' \
-archivePath '/Users/fkrause/Library/Developer/Xcode/Archives/2015-09-21/App 2015-09-21 09.21.56.xcarchive' \
-exportPath '/tmp/1442852529'

gym makes use of the new Xcode 7 API which allows us to specify the export options using a plist file. You can find more information about the available options by running xcodebuild --help.

Using this method there are no workarounds for WatchKit or Swift required, as it uses the same technique Xcode uses when exporting your binary.

Note: the xcbuild-safe.sh script wraps around xcodebuild to workaround some incompatibilities.

Use 'ProvisionQL' for advanced Quick Look in Finder¶

Install ProvisionQL.

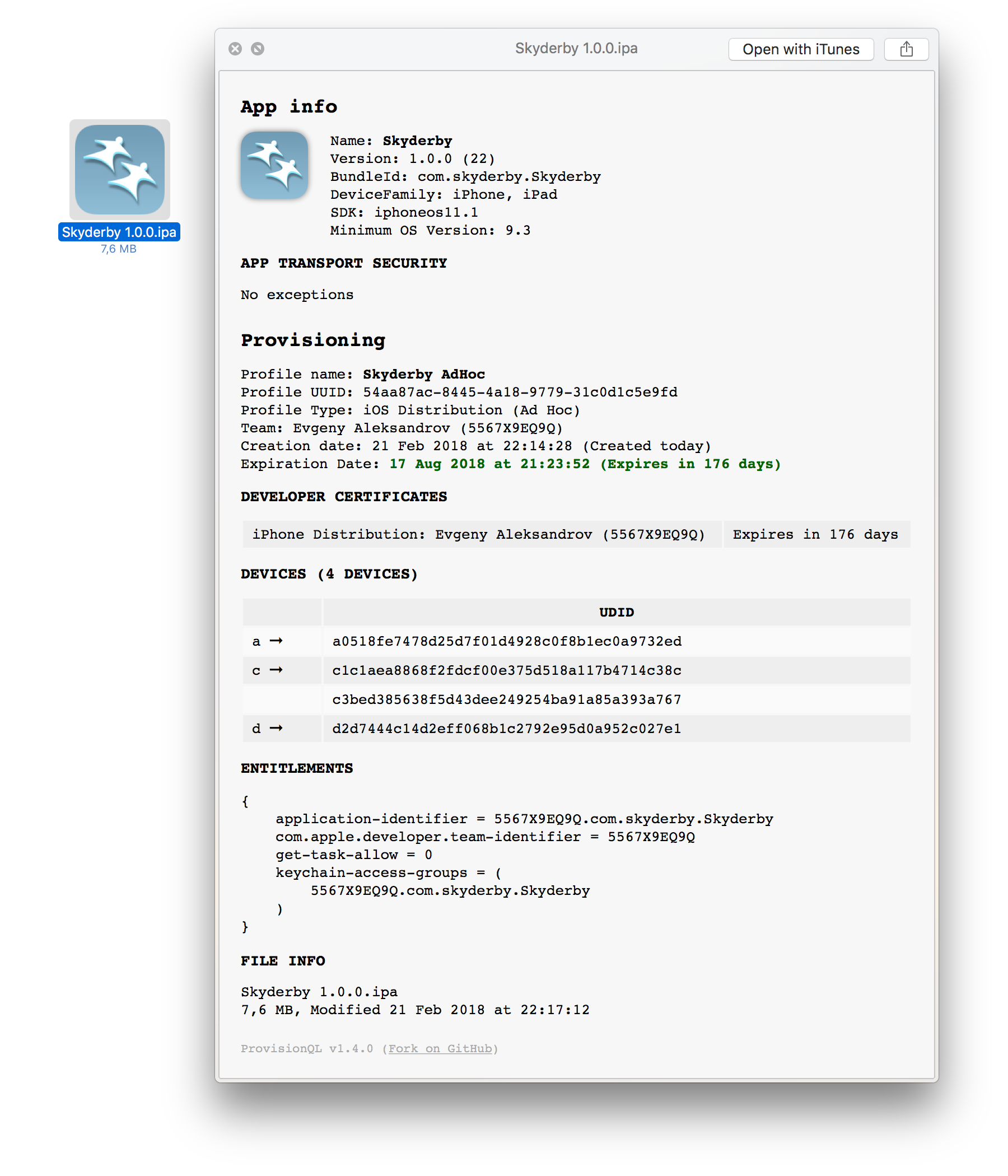

It will show you ipa files like this: img/actions/QuickLookScreenshot-App.png

build_app
Supported platforms	ios, mac
Author	@KrauseFx
Returns	The absolute path to the generated ipa file

4 Examples¶

build_ios_app(scheme: "MyApp", workspace: "MyApp.xcworkspace")

build_ios_app(
  workspace: "MyApp.xcworkspace",
  configuration: "Debug",
  scheme: "MyApp",
  silent: true,
  clean: true,
  output_directory: "path/to/dir", # Destination directory. Defaults to current directory.
  output_name: "my-app.ipa",       # specify the name of the .ipa file to generate (including file extension)
  sdk: "iOS 11.1"        # use SDK as the name or path of the base SDK when building the project.
)

gym         # alias for "build_ios_app"

build_app   # alias for "build_ios_app"

Parameters¶

Key	Description	Default
`workspace`	Path to the workspace file
`project`	Path to the project file
`scheme`	The project's scheme. Make sure it's marked as `Shared`
`clean`	Should the project be cleaned before building it?	`false`
`output_directory`	The directory in which the ipa file should be stored in	`.`
`output_name`	The name of the resulting ipa file
`configuration`	The configuration to use when building the app. Defaults to 'Release'	*
`silent`	Hide all information that's not necessary while building	`false`
`codesigning_identity`	The name of the code signing identity to use. It has to match the name exactly. e.g. 'iPhone Distribution: SunApps GmbH'
`skip_package_ipa`	Should we skip packaging the ipa?	`false`
`include_symbols`	Should the ipa file include symbols?
`include_bitcode`	Should the ipa file include bitcode?
`export_method`	Method used to export the archive. Valid values are: app-store, ad-hoc, package, enterprise, development, developer-id
`export_options`	Path to an export options plist or a hash with export options. Use 'xcodebuild -help' to print the full set of available options
`export_xcargs`	Pass additional arguments to xcodebuild for the package phase. Be sure to quote the setting names and values e.g. OTHER_LDFLAGS="-ObjC -lstdc++"
`skip_build_archive`	Export ipa from previously built xarchive. Uses archive_path as source
`skip_archive`	After building, don't archive, effectively not including -archivePath param
`build_path`	The directory in which the archive should be stored in
`archive_path`	The path to the created archive
`derived_data_path`	The directory where built products and other derived data will go
`result_bundle`	Should an Xcode result bundle be generated in the output directory	`false`
`buildlog_path`	The directory where to store the build log	*
`sdk`	The SDK that should be used for building the application
`toolchain`	The toolchain that should be used for building the application (e.g. com.apple.dt.toolchain.Swift_2_3, org.swift.30p620160816a)
`destination`	Use a custom destination for building the app
`export_team_id`	Optional: Sometimes you need to specify a team id when exporting the ipa file
`xcargs`	Pass additional arguments to xcodebuild for the build phase. Be sure to quote the setting names and values e.g. OTHER_LDFLAGS="-ObjC -lstdc++"
`xcconfig`	Use an extra XCCONFIG file to build your app
`suppress_xcode_output`	Suppress the output of xcodebuild to stdout. Output is still saved in buildlog_path
`disable_xcpretty`	Disable xcpretty formatting of build output
`xcpretty_test_format`	Use the test (RSpec style) format for build output
`xcpretty_formatter`	A custom xcpretty formatter to use
`xcpretty_report_junit`	Have xcpretty create a JUnit-style XML report at the provided path
`xcpretty_report_html`	Have xcpretty create a simple HTML report at the provided path
`xcpretty_report_json`	Have xcpretty create a JSON compilation database at the provided path
`analyze_build_time`	Analyze the project build time and store the output in 'culprits.txt' file
`xcpretty_utf`	Have xcpretty use unicode encoding when reporting builds
`skip_profile_detection`	Do not try to build a profile mapping from the xcodeproj. Match or a manually provided mapping should be used	`false`

* = default value is dependent on the user's system

To show the documentation in your terminal, run

fastlane action build_app
