capture_android_screenshots

Automated localized screenshots of your Android app (via screengrab)

Automated localized screenshots of your Android app on every device

screengrab generates localized screenshots of your Android app for different device types and languages for Google Play and can be uploaded using supply.

Why should I automate this process?

• Create hundreds of screenshots in multiple languages on emulators or real devices, saving you hours
• Easily verify that localizations fit into labels on all screen dimensions to find UI mistakes before you ship
• You only need to configure it once for anyone on your team to run it
• Keep your screenshots perfectly up-to-date with every app update. Your customers deserve it!
• Fully integrates with fastlane and supply

Installation

Install the gem

sudo gem install fastlane

Gradle dependency

androidTestCompile('tools.fastlane:screengrab:x.x.x')

The latest version is

Configuring your Manifest Permissions

Ensure that the following permissions exist in your src/debug/AndroidManifest.xml

<!-- Allows unlocking your device and activating its screen so UI tests can succeed -->
<uses-permission android:name="android.permission.DISABLE_KEYGUARD"/>
<uses-permission android:name="android.permission.WAKE_LOCK"/>

<!-- Allows for storing and retrieving screenshots -->
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />

<!-- Allows changing locales -->
<uses-permission android:name="android.permission.CHANGE_CONFIGURATION" />

Configuring your UI Tests for Screenshots

1. Add @ClassRule public static final LocaleTestRule localeTestRule = new LocaleTestRule(); to your tests class to handle automatic switching of locales
2. To capture screenshots, add the following to your tests Screengrab.screenshot("name_of_screenshot_here"); on the appropriate screens

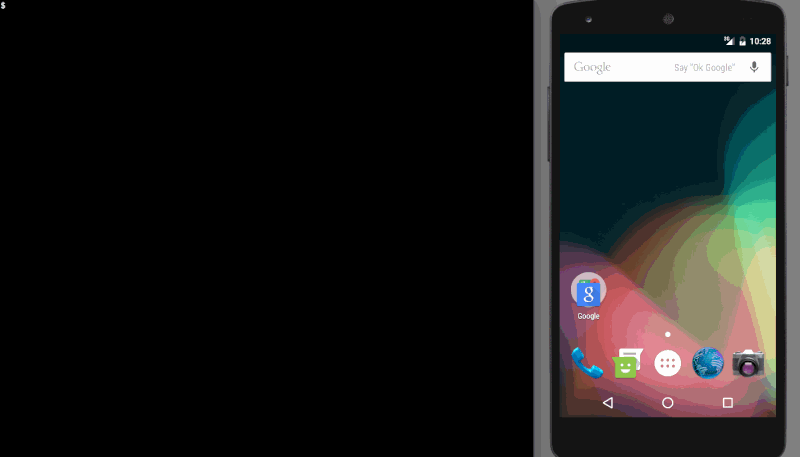

Generating Screenshots with Screengrab

• Then, before running fastlane screengrab you'll need a debug and test apk
  • You can create your APKs with ./gradlew assembleDebug assembleAndroidTest
• Once complete run fastlane screengrab in your app project directory to generate screenshots
  • You will be prompted to provide any required parameters which are not in your Screengrabfile or provided as command line arguments
• Your screenshots will be saved to fastlane/metadata/android in the directory where you ran screengrab

Improved screenshot capture with UI Automator

As of screengrab 0.5.0, you can specify different strategies to control the way screengrab captures screenshots. The newer strategy delegates to UI Automator which fixes a number of problems compared to the original strategy:

• Shadows/elevation are correctly captured for Material UI
• Multi-window situations are correctly captured (dialogs, etc.)
• Works on Android N

However, UI Automator requires a device with API level >= 18, so it is not yet the default strategy. To enable it for all screenshots by default, make the following call before your tests run:

Screengrab.setDefaultScreenshotStrategy(new UiAutomatorScreenshotStrategy());

Improved screenshot capture with Falcon

As of screengrab 1.2.0, you can specify a new strategy to delegate to Falcon. Falcon may work better than UI Automator in some situations and also provides similar benefits as UI Automator:

• Multi-window situations are correctly captured (dialogs, etc.)
• Works on Android N

Falcon requires a device with API level >= 10. To enable it for all screenshots by default, make the following call before your tests run:

Screengrab.setDefaultScreenshotStrategy(new FalconScreenshotStrategy(activityRule.getActivity()));

Advanced Screengrabfile Configuration

Running fastlane screengrab init generated a Screengrabfile which can store all of your configuration options. Since most values will not change often for your project, it is recommended to store them there.

The Screengrabfile is written in Ruby, so you may find it helpful to use an editor that highlights Ruby syntax to modify this file.

# remove the leading '#' to uncomment lines

# app_package_name('your.app.package')
# use_tests_in_packages(['your.screenshot.tests.package'])

# app_apk_path('path/to/your/app.apk')
# tests_apk_path('path/to/your/tests.apk')

locales(['en-US', 'fr-FR', 'it-IT'])

# clear all previously generated screenshots in your local output directory before creating new ones
clear_previous_screenshots(true)

For more information about all available options run

fastlane action screengrab

Tips

UI Tests

Check out Testing UI for a Single App for an introduction to using Espresso for UI testing.

Example UI Test Class (Using JUnit4)

@RunWith(JUnit4.class)
public class JUnit4StyleTests {
    @ClassRule
    public static final LocaleTestRule localeTestRule = new LocaleTestRule();

    @Rule
    public ActivityTestRule<MainActivity> activityRule = new ActivityTestRule<>(MainActivity.class);

    @Test
    public void testTakeScreenshot() {
        Screengrab.screenshot("before_button_click");

        onView(withId(R.id.fab)).perform(click());

        Screengrab.screenshot("after_button_click");
    }
}

There is an example project showing how to use use JUnit 3 or 4 and Espresso with the screengrab Java library to capture screenshots during a UI test run.

Using JUnit 4 is preferable because of its ability to perform actions before and after the entire test class is run. This means you will change the device's locale far fewer times when compared with JUnit 3 running those commands before and after each test method.

When using JUnit 3 you'll need to add a bit more code:

• Use LocaleUtil.changeDeviceLocaleTo(LocaleUtil.getTestLocale()); in setUp()
• Use LocaleUtil.changeDeviceLocaleTo(LocaleUtil.getEndingLocale()); in tearDown()
• Use Screengrab.screenshot("name_of_screenshot_here"); to capture screenshots at the appropriate points in your tests

If you're having trouble getting your device unlocked and the screen activated to run tests, try using ScreenUtil.activateScreenForTesting(activity); in your test setup.

Clean Status Bar

You can use QuickDemo to clean up the status bar for your screenshots.

---

capture_android_screenshots
Supported platforms	android
Author	@asfalcone, @i2amsam, @mfurtak

3 Examples

capture_android_screenshots

screengrab # alias for "capture_android_screenshots"

capture_android_screenshots(
  locales: ["en-US", "fr-FR", "ja-JP"],
  clear_previous_screenshots: true,
  app_apk_path: "build/outputs/apk/example-debug.apk",
  tests_apk_path: "build/outputs/apk/example-debug-androidTest-unaligned.apk"
)

Parameters

Key	Description	Default
android_home	Path to the root of your Android SDK installation, e.g. ~/tools/android-sdk-macosx	*
build_tools_version	The Android build tools version to use, e.g. '23.0.2'
locales	A list of locales which should be used	["en-US"]
clear_previous_screenshots	Enabling this option will automatically clear previously generated screenshots before running screengrab	false
output_directory	The directory where to store the screenshots	fastlane/metadata/android
skip_open_summary	Don't open the summary after running screengrab	*
app_package_name	The package name of the app under test (e.g. com.yourcompany.yourapp)	*
tests_package_name	The package name of the tests bundle (e.g. com.yourcompany.yourapp.test)
use_tests_in_packages	Only run tests in these Java packages
use_tests_in_classes	Only run tests in these Java classes
launch_arguments	Additional launch arguments
test_instrumentation_runner	The fully qualified class name of your test instrumentation runner	android.support.test.runner.AndroidJUnitRunner
ending_locale	Return the device to this locale after running tests	en-US
app_apk_path	The path to the APK for the app under test	*
tests_apk_path	The path to the APK for the the tests bundle	*
specific_device	Use the device or emulator with the given serial number or qualifier
device_type	Type of device used for screenshots. Matches Google Play Types (phone, sevenInch, tenInch, tv, wear)	phone
exit_on_test_failure	Whether or not to exit Screengrab on test failure. Exiting on failure will not copy sceenshots to local machine nor open sceenshots summary	true
reinstall_app	Enabling this option will automatically uninstall the application before running it	false

* = default value is dependent on the user's system

---

To show the documentation in your terminal, run

fastlane action capture_android_screenshots
