scan¶

Alias for the run_tests action

The easiest way to run tests of your iOS and Mac app¶

scan makes it easy to run tests of your iOS and Mac app on a simulator or connected device.

What's scan?¶

Before scan¶

xcodebuild \
  -workspace MyApp.xcworkspace \
  -scheme "MyApp" \
  -sdk iphonesimulator \
  -destination 'platform=iOS Simulator,name=iPhone 6,OS=8.1' \
  test

As the output will look like this

/Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/Objects-normal/arm64/main.o Example/main.m normal arm64 objective-c com.apple.compilers.llvm.clang.1_0.compiler
    cd /Users/felixkrause/Developer/fastlane/gym/example/cocoapods
    export LANG=en_US.US-ASCII
    export PATH="/Applications/Xcode-beta.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/usr/bin:/Applications/Xcode-beta.app/Contents/Developer/usr/bin:/Users/felixkrause/.rvm/gems/ruby-2.2.0/bin:/Users/felixkrause/.rvm/gems/ruby-2.2.0@global/bin:/Users/felixkrause/.rvm/rubies/ruby-2.2.0/bin:/Users/felixkrause/.rvm/bin:/usr/local/heroku/bin:/usr/local/bin:/usr/bin:/bin:/usr/sbin:/sbin"
    /Applications/Xcode-beta.app/Contents/Developer/Toolchains/XcodeDefault.xctoolchain/usr/bin/clang -x objective-c -arch arm64 -fmessage-length=126 -fdiagnostics-show-note-include-stack -fmacro-backtrace-limit=0 -fcolor-diagnostics -std=gnu99 -fobjc-arc -fmodules -gmodules -fmodules-cache-path=/Users/felixkrause/Library/Developer/Xcode/DerivedData/ModuleCache -fmodules-prune-interval=86400 -fmodules-prune-after=345600 -fbuild-session-file=/Users/felixkrause/Library/Developer/Xcode/DerivedData/ModuleCache/Session.modulevalidation -fmodules-validate-once-per-build-session -Wnon-modular-include-in-framework-module -Werror=non-modular-include-in-framework-module -Wno-trigraphs -fpascal-strings -Os -fno-common -Wno-missing-field-initializers -Wno-missing-prototypes -Werror=return-type -Wunreachable-code -Wno-implicit-atomic-properties -Werror=deprecated-objc-isa-usage -Werror=objc-root-class -Wno-arc-repeated-use-of-weak -Wduplicate-method-match -Wno-missing-braces -Wparentheses -Wswitch -Wunused-function -Wno-unused-label -Wno-unused-parameter -Wunused-variable -Wunused-value -Wempty-body -Wconditional-uninitialized -Wno-unknown-pragmas -Wno-shadow -Wno-four-char-constants -Wno-conversion -Wconstant-conversion -Wint-conversion -Wbool-conversion -Wenum-conversion -Wshorten-64-to-32 -Wpointer-sign -Wno-newline-eof -Wno-selector -Wno-strict-selector-match -Wundeclared-selector -Wno-deprecated-implementations -DCOCOAPODS=1 -DNS_BLOCK_ASSERTIONS=1 -DOBJC_OLD_DISPATCH_PROTOTYPES=0 -isysroot /Applications/Xcode-beta.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/SDKs/iPhoneOS9.0.sdk -fstrict-aliasing -Wprotocol -Wdeprecated-declarations -miphoneos-version-min=9.0 -g -fvisibility=hidden -Wno-sign-conversion -fembed-bitcode -iquote /Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/ExampleProductName-generated-files.hmap -I/Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/ExampleProductName-own-target-headers.hmap -I/Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/ExampleProductName-all-target-headers.hmap -iquote /Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/ExampleProductName-project-headers.hmap -I/Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/BuildProductsPath/Release-iphoneos/include -I/Users/felixkrause/Developer/fastlane/gym/example/cocoapods/Pods/Headers/Public -I/Users/felixkrause/Developer/fastlane/gym/example/cocoapods/Pods/Headers/Public/HexColors -I/Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/DerivedSources/arm64 -I/Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/DerivedSources -F/Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/BuildProductsPath/Release-iphoneos -isystem /Users/felixkrause/Developer/fastlane/gym/example/cocoapods/Pods/Headers/Public -isystem /Users/felixkrause/Developer/fastlane/gym/example/cocoapods/Pods/Headers/Public/HexColors -MMD -MT dependencies -MF /Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/Objects-normal/arm64/main.d --serialize-diagnostics /Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/Objects-normal/arm64/main.dia -c /Users/felixkrause/Developer/fastlane/gym/example/cocoapods/Example/main.m -o /Users/felixkrause/Library/Developer/Xcode/DerivedData/Example-fhlmxikmujknefgidqwqvtbatohi/Build/Intermediates/ArchiveIntermediates/Example/IntermediateBuildFilesPath/Example.build/Release-iphoneos/Example.build/Objects-normal/arm64/main.o

you'll probably want to use something like xcpretty, which will look like this:

set -o pipefail &&
  xcodebuild \
    -workspace MyApp.xcworkspace \
    -scheme "MyApp" \
    -sdk iphonesimulator \
    -destination 'platform=iOS Simulator,name=iPhone 6,OS=8.1' \
    test \
  | xcpretty \
    -r "html" \
    -o "tests.html"

With scan¶

fastlane scan

Why scan?¶

scan uses the latest APIs and tools to make running tests plain simple and offer a great integration into your existing workflow, like fastlane or Jenkins.

	scan Features
🏁	Beautiful inline build output while running the tests
🚠	Sensible defaults: Automatically detect the project, schemes and more
📊	Support for HTML, JSON and JUnit reports
🔎	Xcode duplicated your simulators again? scan will handle this for you
🔗	Works perfectly with fastlane and other tools
🚅	Don't remember any complicated build commands, just scan
🔧	Easy and dynamic configuration using parameters and environment variables
📢	Beautiful slack notifications of the test results
💾	Store common build settings in a `Scanfile`
📤	The raw `xcodebuild` outputs are stored in `~/Library/Logs/scan`
💻	Supports both iOS and Mac applications
👱	Automatically switches to the travis formatter when running on Travis
📖	Helps you resolve common test errors like simulator not responding

scan uses a plain xcodebuild command, therefore keeping 100% compatible with xcodebuild. To generate the nice output, scan uses xcpretty. You can alway access the raw output in ~/Library/Logs/scan.

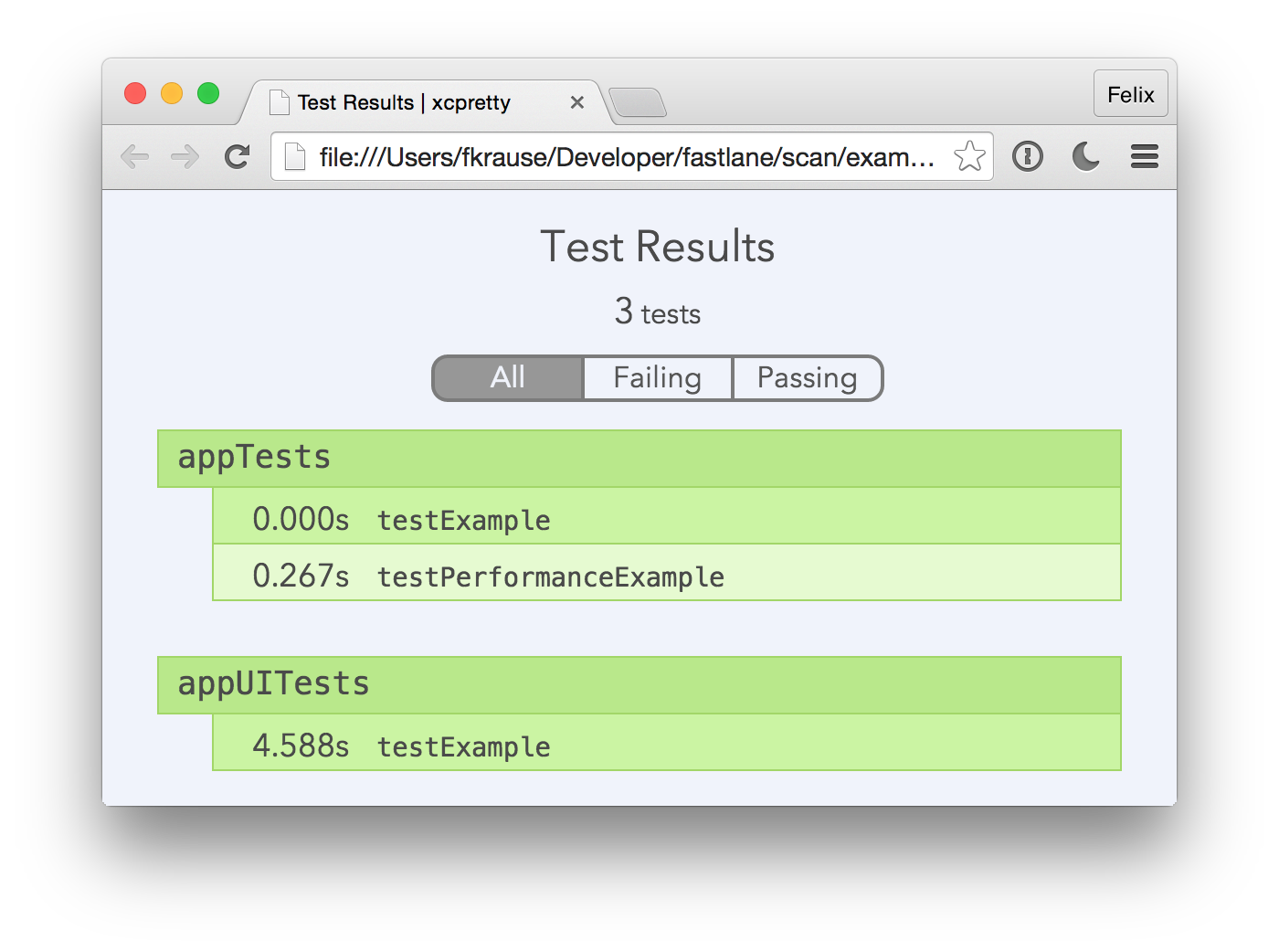

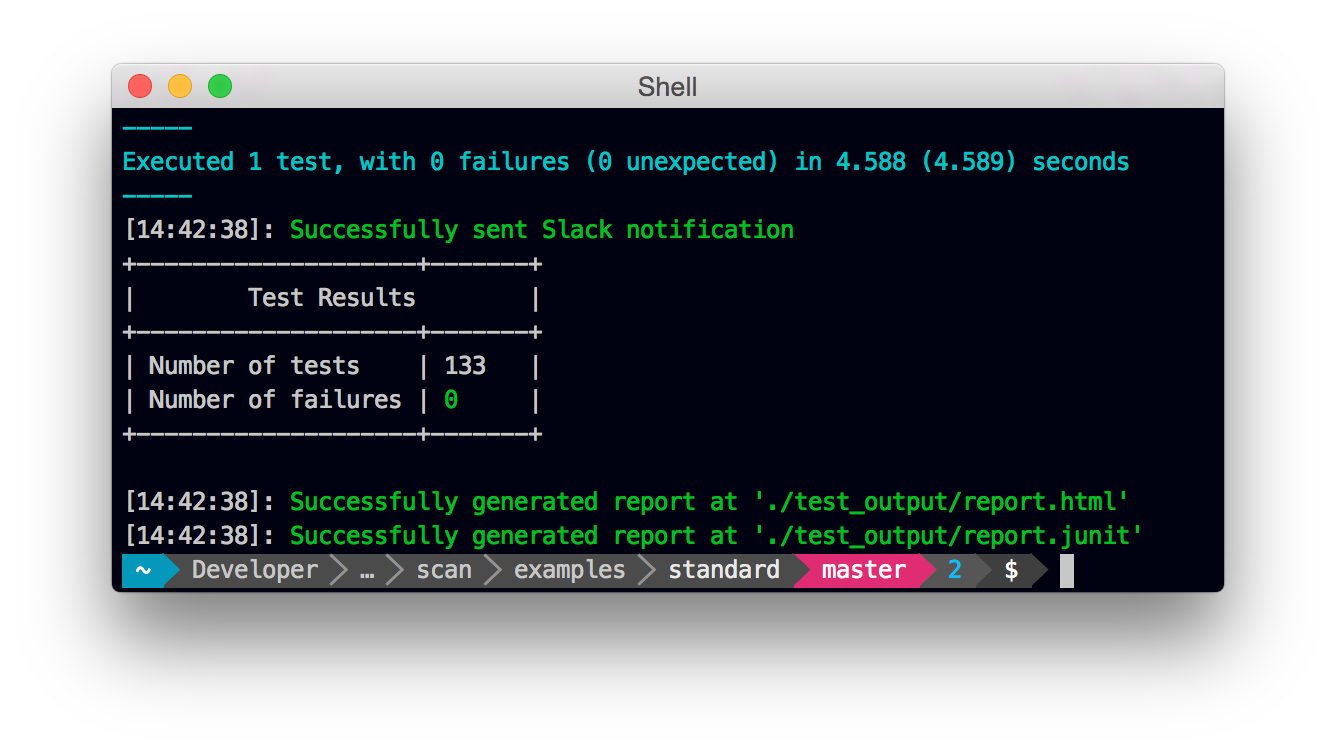

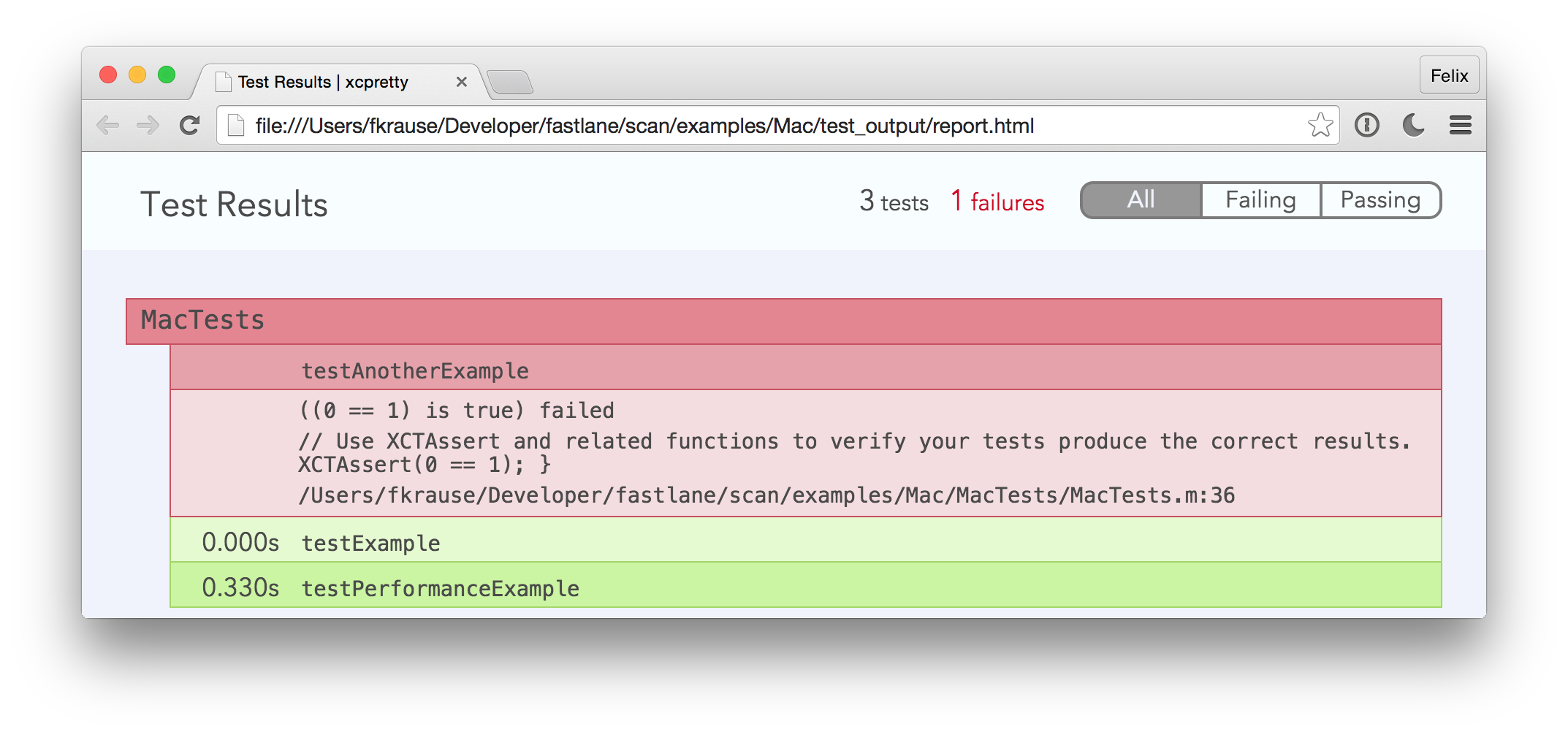

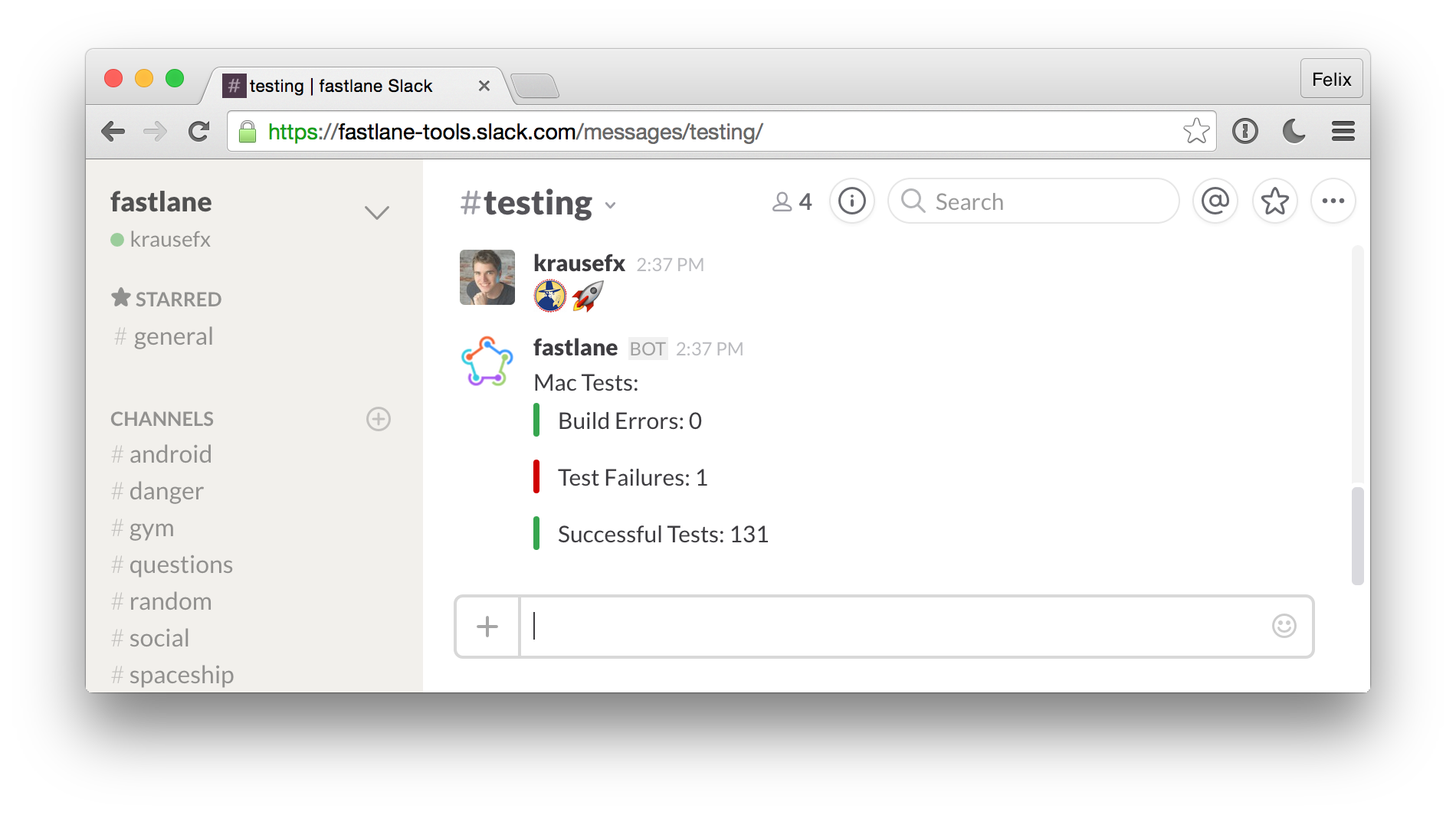

img/actions/scanScreenshot.png img/actions/slack.png img/actions/scanHTML.png img/actions/scanHTMLFailing.png

Usage¶

fastlane scan

That's all you need to run your tests. If you want more control, here are some available parameters:

fastlane scan --workspace "Example.xcworkspace" --scheme "AppName" --device "iPhone 6" --clean

If you need to use a different xcode install, use xcode-select or define DEVELOPER_DIR:

DEVELOPER_DIR="/Applications/Xcode6.2.app" scan

To run scan on multiple devices via fastlane, add this to your Fastfile:

scan(
  workspace: "Example.xcworkspace",
  devices: ["iPhone 6s", "iPad Air"]
)

For a list of all available parameters use

fastlane action scan

To access the raw xcodebuild output open ~/Library/Logs/scan

Scanfile¶

Since you might want to manually trigger the tests but don't want to specify all the parameters every time, you can store your defaults in a so called Scanfile.

Run fastlane scan init to create a new configuration file. Example:

scheme("Example")
devices(["iPhone 6s", "iPad Air"])

clean(true)

output_types("html")

Automating the whole process¶

scan works great together with fastlane, which connects all deployment tools into one streamlined workflow.

Using fastlane you can define a configuration like

lane :test do
  scan(scheme: "Example")
end

scan
Supported platforms	ios, mac
Author	@KrauseFx

6 Examples¶

run_tests

scan # alias for "run_tests"

run_tests(
  workspace: "App.xcworkspace",
  scheme: "MyTests",
  clean: false
)

# Build For Testing
run_tests(
   derived_data_path: "my_folder",
   build_for_testing: true
)

# run tests using derived data from prev. build
run_tests(
   derived_data_path: "my_folder",
   test_without_building: true
)

# or run it from an existing xctestrun package
run_tests(
   xctestrun: "/path/to/mytests.xctestrun"
)

Parameters¶

Key	Description	Default
`workspace`	Path to the workspace file
`project`	Path to the project file
`device`	The name of the simulator type you want to run tests on (e.g. 'iPhone 6')
`toolchain`	The toolchain that should be used for building the application (e.g. com.apple.dt.toolchain.Swift_2_3, org.swift.30p620160816a)
`devices`	Array of devices to run the tests on (e.g. ['iPhone 6', 'iPad Air'])
`scheme`	The project's scheme. Make sure it's marked as `Shared`
`clean`	Should the project be cleaned before building it?	`false`
`code_coverage`	Should code coverage be generated? (Xcode 7 and up)
`address_sanitizer`	Should the address sanitizer be turned on?
`thread_sanitizer`	Should the thread sanitizer be turned on?
`skip_build`	Should debug build be skipped before test build?	`false`
`output_directory`	The directory in which all reports will be stored	*
`output_style`	Define how the output should look like (standard, basic, rspec or raw)
`output_types`	Comma separated list of the output types (e.g. html, junit, json-compilation-database)	`html,junit`
`output_files`	Comma separated list of the output files, corresponding to the types provided by :output_types (order should match). If specifying an output type of json-compilation-database with :use_clang_report_name enabled, that option will take precedence
`buildlog_path`	The directory where to store the raw log	*
`include_simulator_logs`	If the logs generated by the app (e.g. using NSLog, perror, etc.) in the Simulator should be written to the output_directory	`false`
`formatter`	A custom xcpretty formatter to use
`max_concurrent_simulators`	Constrain the number of simulator devices on which to test concurrently. Equivalent to -maximum-concurrent-test-simulator-destinations
`disable_concurrent_testing`	Do not run test bundles in parallel on the specified destinations. Testing will occur on each destination serially. Equivalent to -disable-concurrent-testing	`false`
`test_without_building`	Test without building, requires a derived data path
`build_for_testing`	Build for testing only, does not run tests
`xctestrun`	Run tests using the provided .xctestrun file
`derived_data_path`	The directory where build products and other derived data will go
`should_zip_build_products`	Should zip the derived data build products and place in output path?	`false`
`result_bundle`	Should an Xcode result bundle be generated in the output directory	`false`
`sdk`	The SDK that should be used for building the application
`open_report`	Should the HTML report be opened when tests are completed?	`false`
`configuration`	The configuration to use when building the app. Defaults to 'Release'	*
`destination`	Use only if you're a pro, use the other options instead
`xcargs`	Pass additional arguments to xcodebuild. Be sure to quote the setting names and values e.g. OTHER_LDFLAGS="-ObjC -lstdc++"
`xcconfig`	Use an extra XCCONFIG file to build your app
`only_testing`	Array of strings matching Test Bundle/Test Suite/Test Cases to run
`skip_testing`	Array of strings matching Test Bundle/Test Suite/Test Cases to skip
`slack_url`	Create an Incoming WebHook for your Slack group to post results there
`slack_channel`	#channel or @username
`slack_message`	The message included with each message posted to slack
`skip_slack`	Don't publish to slack, even when an URL is given	`false`
`slack_only_on_failure`	Only post on Slack if the tests fail	`false`
`use_clang_report_name`	Generate the json compilation database with clang naming convention (compile_commands.json)	`false`
`custom_report_file_name`	DEPRECATED! Use `--output_files` instead - Sets custom full report file name when generating a single report
`fail_build`	Should this step stop the build if the tests fail? Set this to false if you're using trainer	`true`

* = default value is dependent on the user's system

To show the documentation in your terminal, run

fastlane action scan
